Help/alert panel

The help/alert panel feature enables participants to send alerts to experimenters inside Deliberate Lab and experimenters to receive and respond to those alerts.

User journey

Participant view

Participants will see a help chat icon at the top right of their screen; clicking this will open a right-side panel where they can type and send a custom message.

Each sent message in the panel will show the experimenter’s response once available (or, if the experimenter reviews but does not respond to the message, a read receipt).

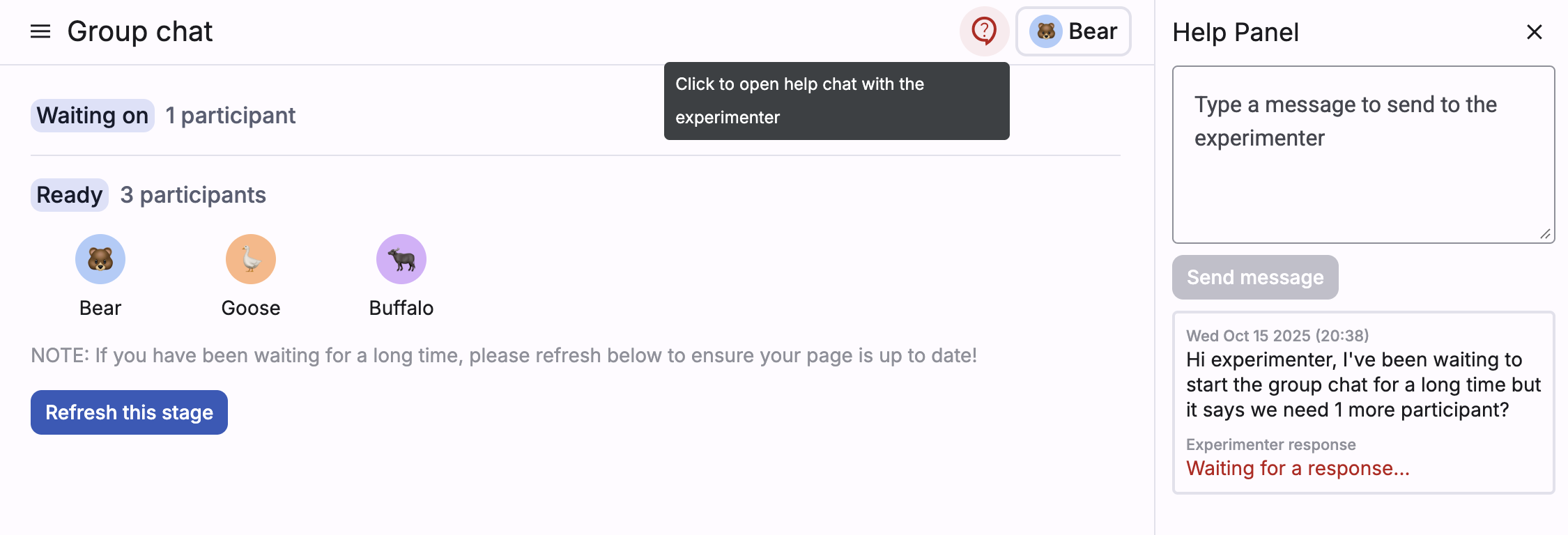

Screenshot of participant view of help panel containing alert message

Experimenter view

In the experiment dashboard, experimenters will see an alert tab on the left side. The alert icon will change to a red, “active notification” style if there are new messages to review.

Once in the alert tab, experimenters can send a custom response to the participant, or just click to mark the message as “read” (which will then show a read receipt to the participant).

After a messagae is marked as read or responded to, it will appear under “Past Alerts.” Note that experimenters can send multiple responses to the same message.

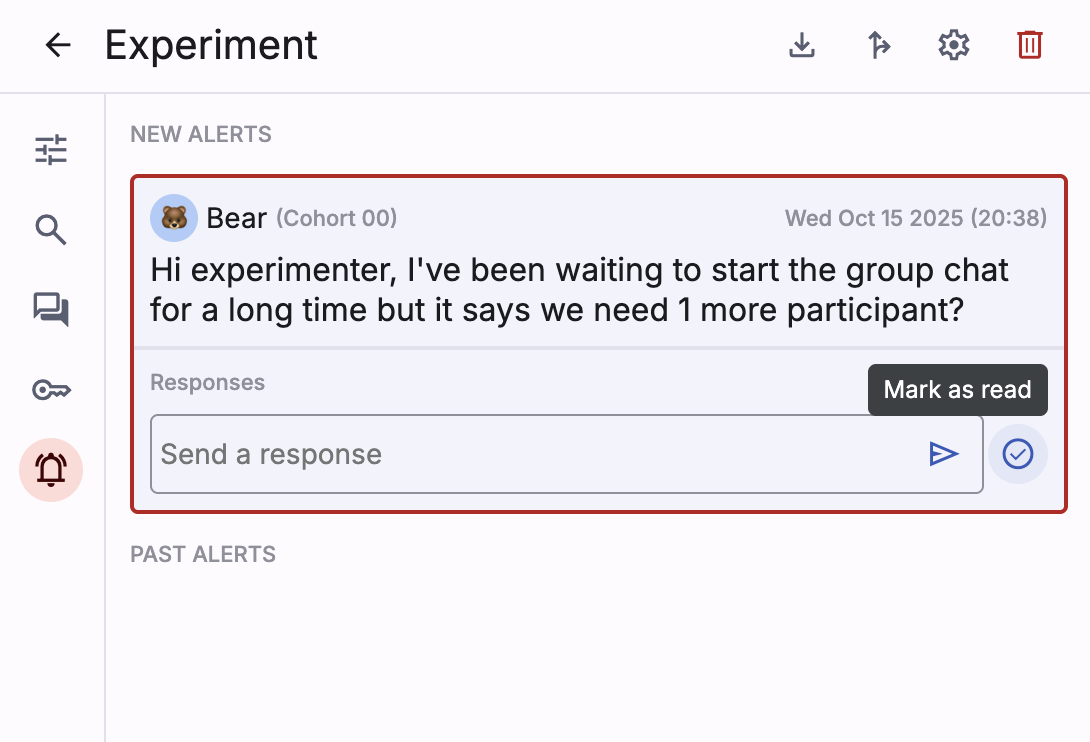

Screenshot of experimenter view of alerts in dashboard

Implementation

Definitions in /utils

The AlertMessage item is set up (under /utils/src/alert.ts) to consist of a single message from a participant, a list of responses from the experimenter(s), and a status (e.g., whether or not message was marked as read by the experimenter).

We also capture experiment ID, participant ID, and the participant’s current cohort and stage at the time the message was sent.

Note: To make alert message threads more of a chat back-and-forth (e.g., both parties can send multiple messages), we might consider restructuring alerts to work more like chat threads (distinct messages for everything, including experimenter responses, but with a discussionId field to help bundle messages into threads).

Endpoints in /functions

The following exist under /functions/src/alert.endpoints.ts:

  • sendAlertMessage: called by participants when writing a new alert message; this writes the AlertMessage as a document under the participant (so that the participant can see only their alert messages) and writes a copy under the experiment (so that it’s easy for experimenters to fetch all alerts from all participants at the experiment level)

  • ackAlertMessage: called by experimenters when responding; this fetches an existing alert message by ID, updates its status and responses, and re-writes it to both the participant-level and experiment-level paths

TODO: Logic for both endpoints should be cleaned up so that the experiment-level alerts are updated via trigger function (for the participant-level alert path).

UI components in /frontend

  • The participant_help_panel (under the participant_view directory) renders the right-side help panel and the participant’s view of their alerts using a snapshot listener for participant-level alerts located in ParticipantService
  • The experimenter_panel renders the alert panel in the experiment dashboard and uses a snapshot listener for experiment-level alerts located in ExperimentManagerService

Future improvements on the experimenter side might include:

  • Collapse/hide alerts (and/or response text box) in the experimenter view
  • Mark alerts as “resolved” (right now the experimenter can only mark “read”)
  • Group alert messages by participant

Data download

We fetch the alerts from the experiment-level collection (this is stored in the ExperimentDownload object) and use this to create a CSV where each row is an AlertMessage.
